The complete package includes the following: |
|
LE 100
|
LE 101
|
LE 102
|
LE 200
|
LE201
|
LE202
|
LEBi 1200
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
· Connections: Network (TCP/IP)
· Reader Type: Contactless RFID reader
· Booking memory: up to 100,000 bookings
· Simple installation and commissioning
Standard functions and features of the AMS Easy Access Software:
· Software: .Net Framework
· Database: MSSQL Express is delivered free of charge
· Maximum number of master data: 2000 Employees

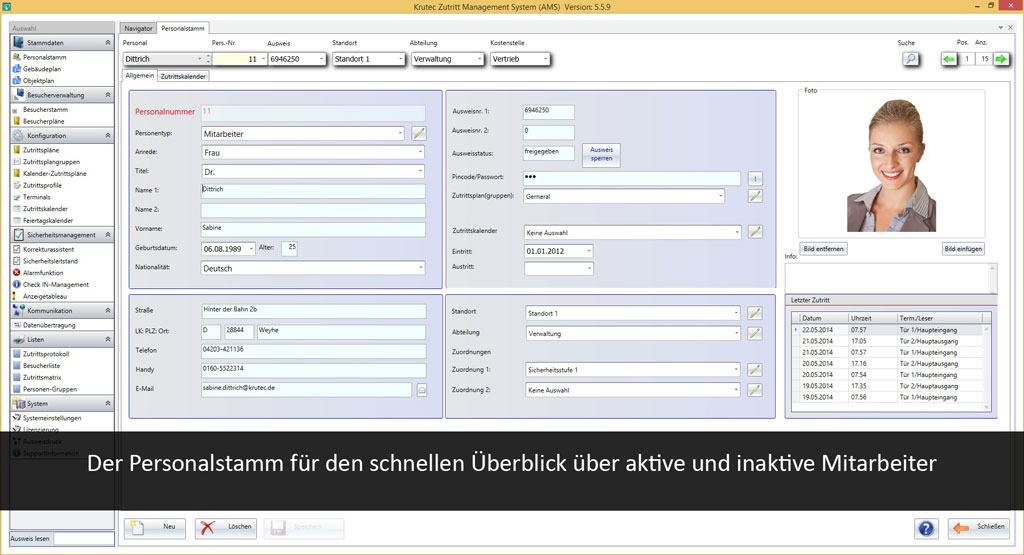

· Employee Data: A personal information sheet of each employee is created
· Storage of bookings: Is possible even without a network connection
· Sorting of employees: By location and department

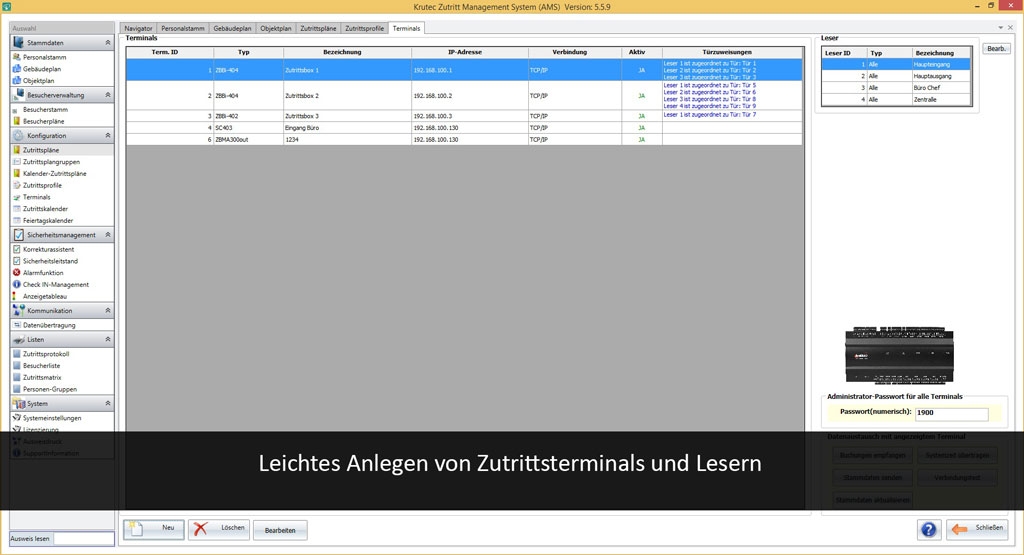

· Number of connectable devices: 9 - One is included in each package
· Number of connectable Readers: For 9 readers
· Network capability: Yes - server-client application
· Password protection: Yes
· List Generator: Crystal Reports - You can now export all data and lists to Excel, Word and PDF
Parameter / Settings:

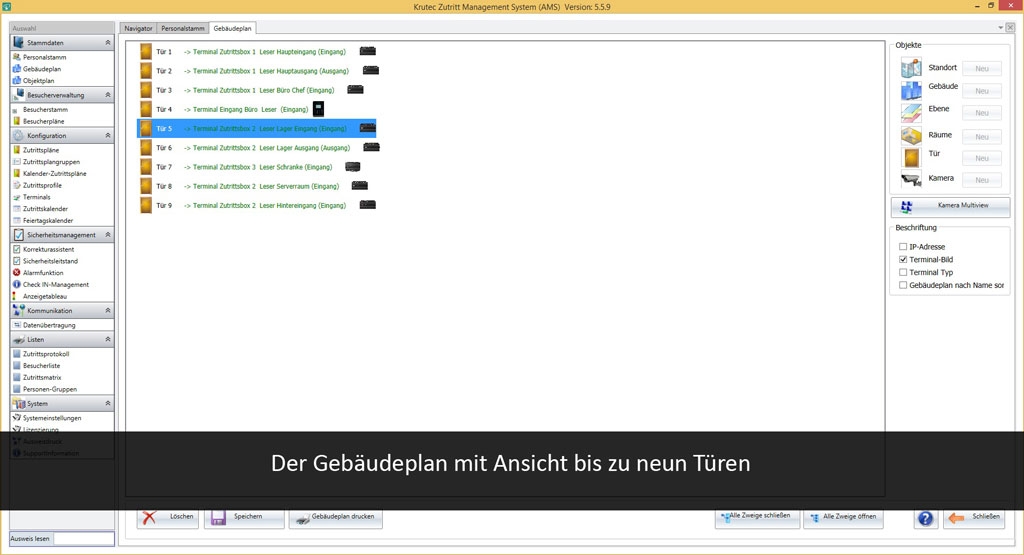

· Creation of a building/ location plan with up to 9 doors, gates, barriers, turnstiles, etc.
are graphically represented in a tree diagram
· All entry boxes and readers are already invested in the software and pre-assembled
· The boxes are then assigned to access components with a few mouse clicks
· With the creation of a location plan and the 9 components an individual
Access structure can be imaged

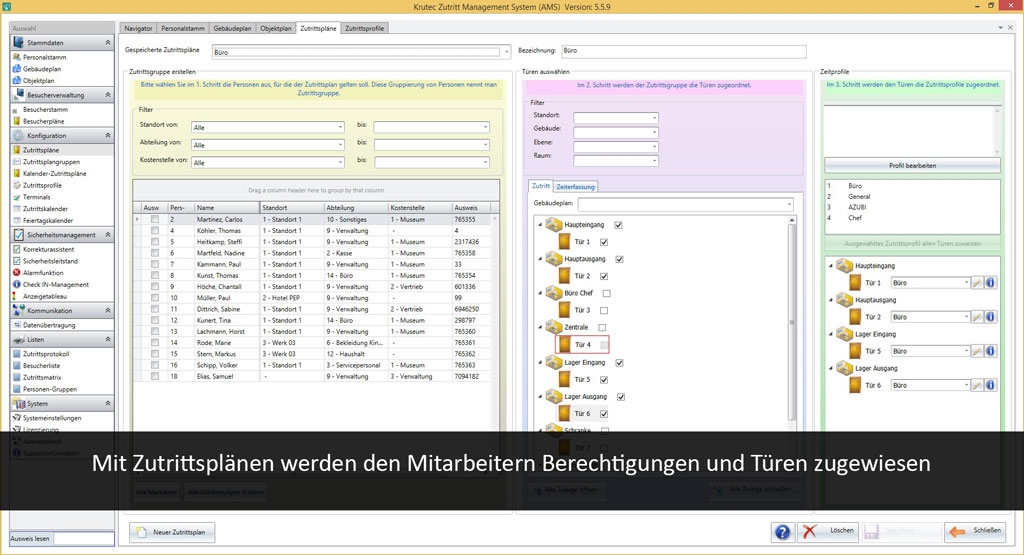

· Access Plans: Up to 4 access plans can be stored in the device
The access authorisation for the people are stored in the access plan

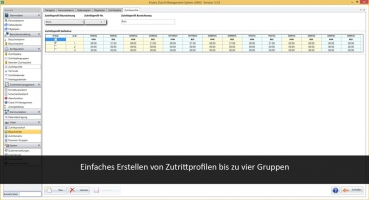

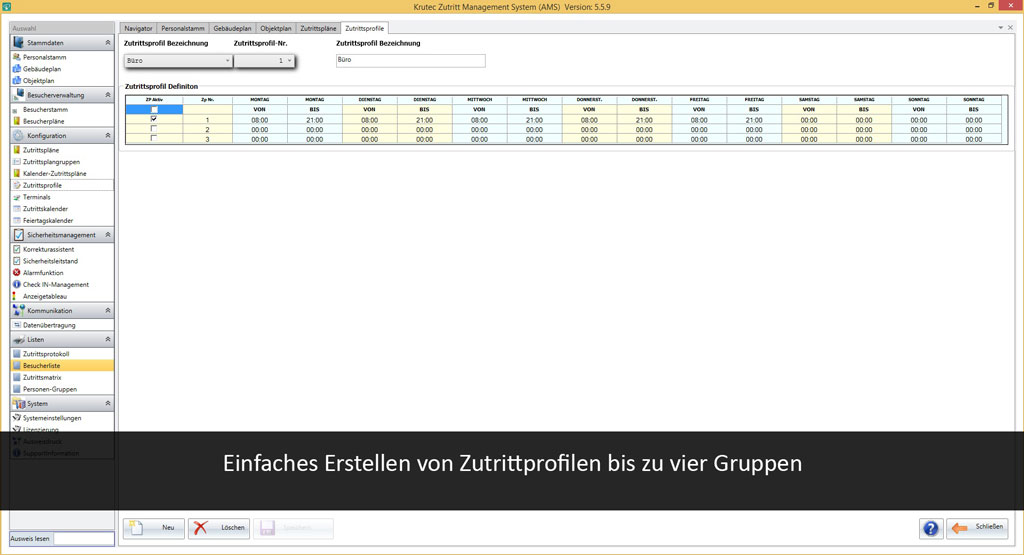

· Access profiles: Up to 4 access profiles are stored
The access profile defines day of the week, the times at which a person is allowed access
· Public holiday calendar: The holiday calendar allows special access control on holidays
Operation and Assessment:

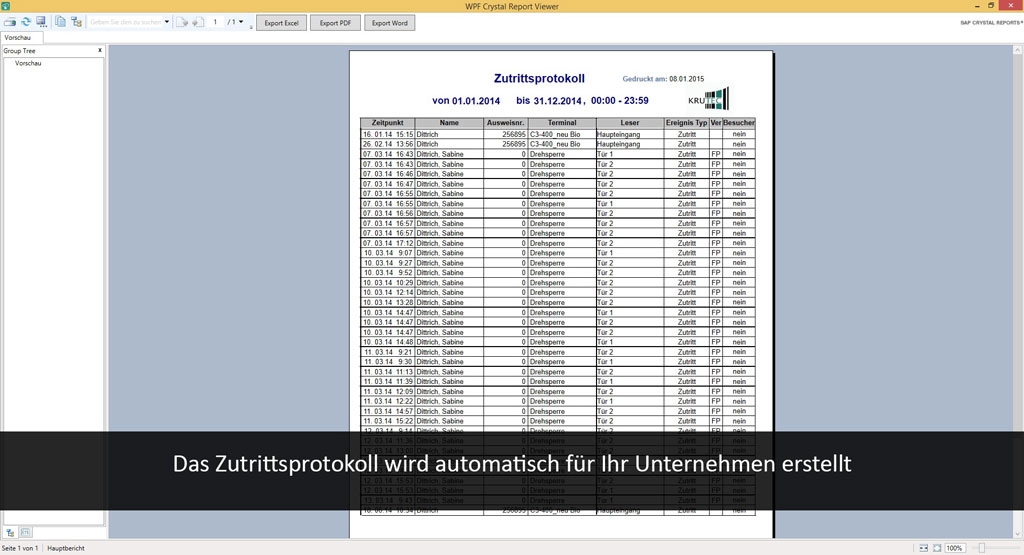

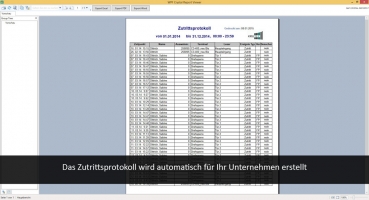

· Accounting record for each employee, readers and a number of variants of access protocols
· Device Support:ZK Krutec device, electronic knob cylinder and door hardware
· Application:Doors, gates, turnstiles, turnstiles, barriers etc.
The admission of Krutec software is compatible with
the Krutec Easy, Professional and Premium Time
· Investment Guarantee: update and upgrade with larger standard
Whether a door or complete industrial plants, the right software module allows to quickly implement custom
security of your business requirements
Following modules are available:
· Krutec Access Management System (AMS) for
· Krutec AMS Easy
· Krutec AMS Professional
· Krutec AMS Premium
· The Krutec Visitor Management System (VMS) for visitor management
· The Krutec Check -IN management (CMS) for the immediate identification of people who are
still present in case of alarm
CPU: 32bit CPU
RAM: 32M bits
Flash Memory: 126 MB
Fingerprints: 3,000
RFID data: 30,000
Booking memory: 100,000
Power supply: 9.6 V - 14.4 V DC Max. 1A
Wiegand Reader Port: 4ea (26bit Wiegand, 8bit Brust for Pin)
RS485 Reader Port: 1EA externalities RS485 Port
Communication: TCPIP / RS 485
Baudrate recommended: 38.400bps
Baudrate selectable: 9.600bps, 19.200bps, 57.600bps
Input Port: 4ea Exit Button Door Sensor # 1.2 # 1.2
Output Port: 2ea (2Aux From-C Relay Output, SPDT 2A @ 30VDC
LEDs: 5
Operating temperatures: 0 bis 50 Grad
Humidity: 10% bis 80%
Dimensions in mm without an external box: L = 226, B = 106, H = 36

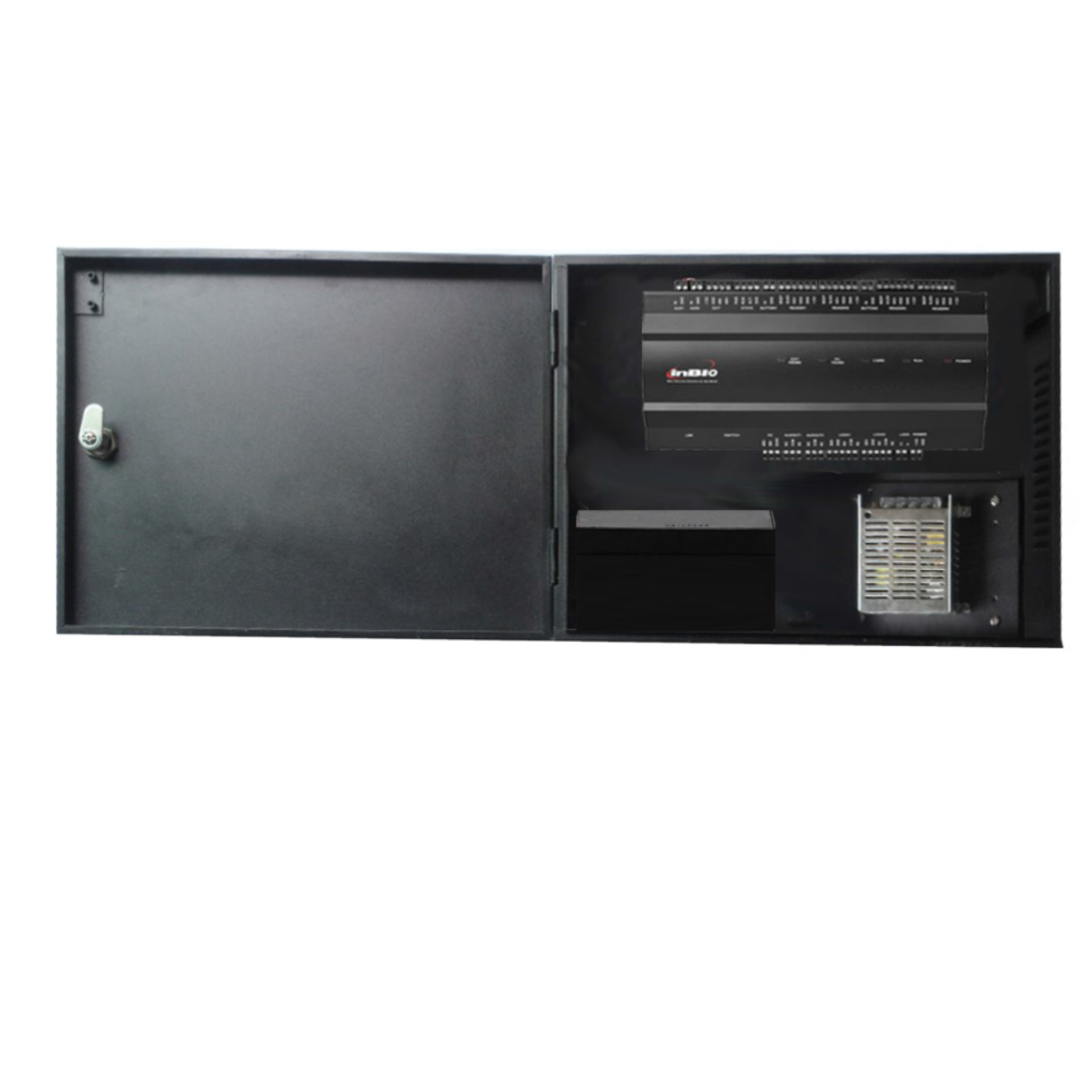

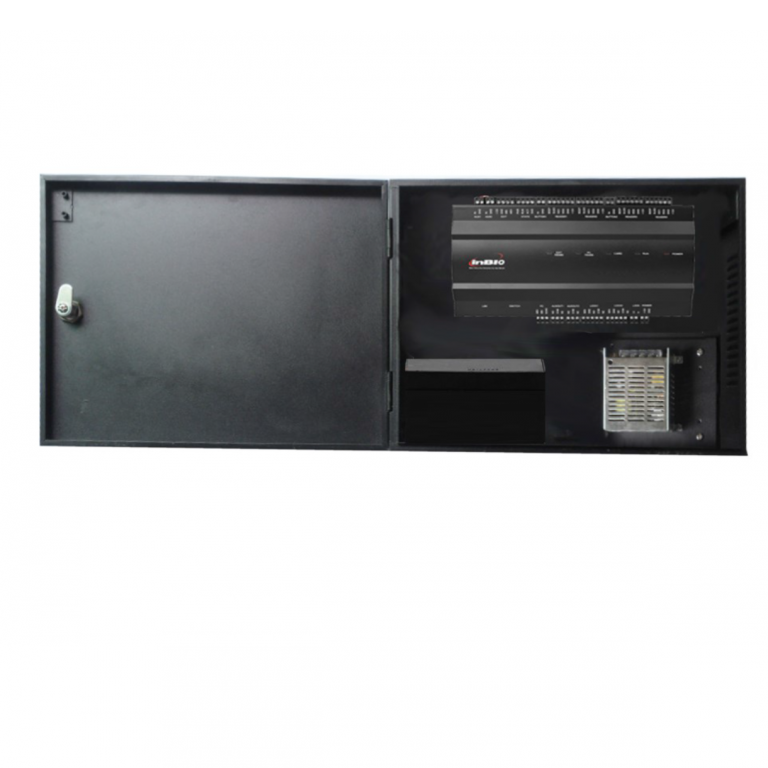

Dimensions with power supply and metal box in mm: L = 400, B = 330, H = 36
Daylight saving time: Yes, if parameterized
